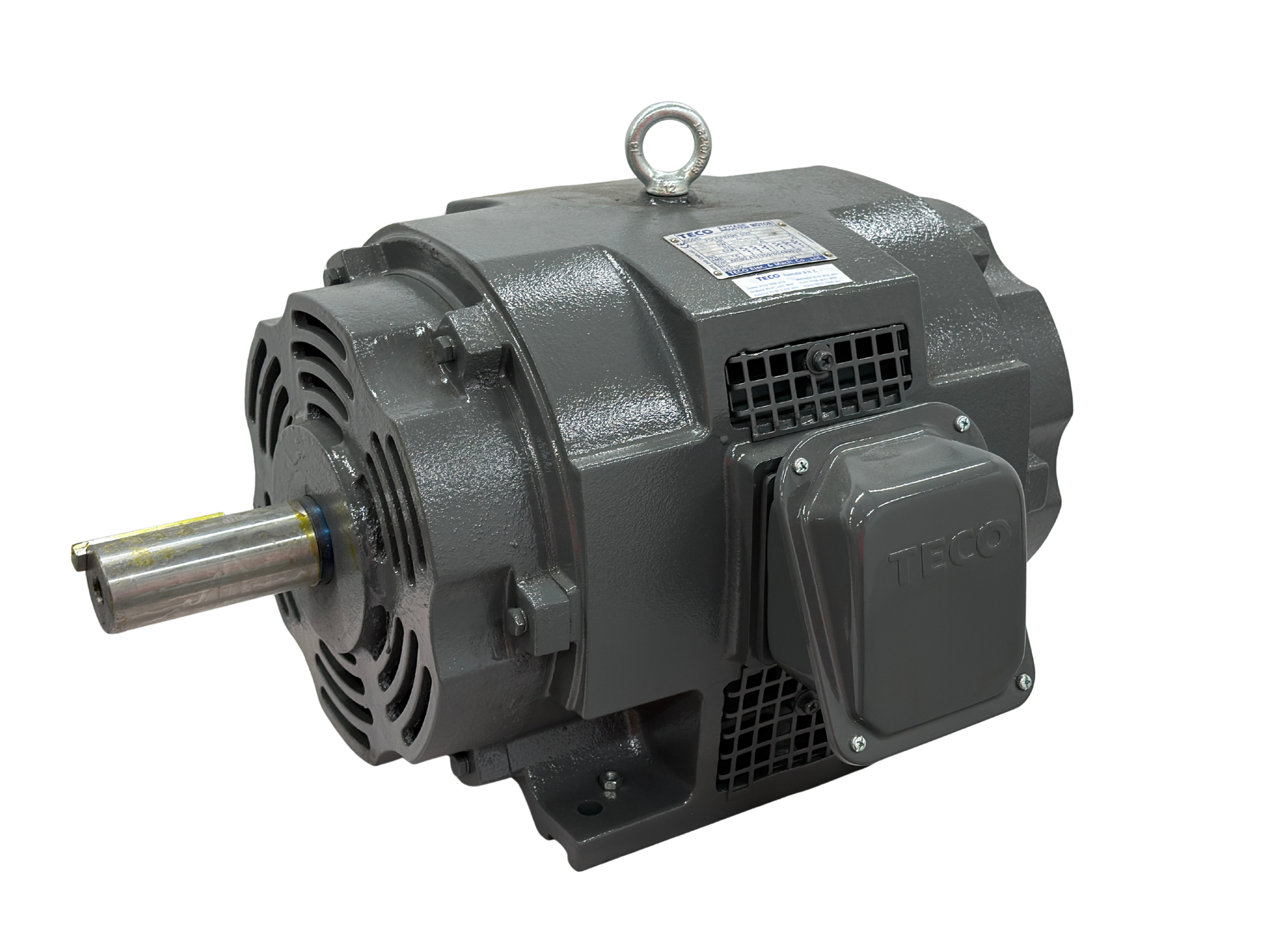

TECO Open Drip Proof (ODP)

High-performance metric frame motor, offering a wide power range and versatile features.

TECO Open Drip Proof Electric Motor is designed in accordance with the IEC60034 standards.

We offer a wide power range, ranging from 7.5kW to 710kW. The motor features an Open Drip Proof (IC01) design, providing IP23 protection. Specifically, the TECO models ASHB and ASJC meet the IEC60034 *Minimum Efficiency Performance Standard, as specified in table B2.

Operating on a voltage range of 380-415 Volts, with 3-phase and 50 Hz frequency, TECO Open Drip Proof Electric Motor can also be customized to suit different power supply requirements.

It employs a high-quality insulation system that utilizes Class H and F materials. The motor’s low temperature rise ensures sufficient thermal reserve.

Designed for continuous rated operation duty type S1, TECO Open Drip Proof Electric Motor is built with a combination of Cast Iron and Fabricated Steel, featuring a side-mounted terminal box for convenience. It offers IP23 protection as standard.

To ensure customer satisfaction, the motor comes with a 2-year warranty, providing support and coverage against manufacturing defects or performance issues.

See more TECO cast iron motors.

• Metric frame motor to AS1359
• 7.5kW to 700kW
• Open Drip Proof (IC01)
• Motor types ASHB & ASJC, meet AS1359.5 *Minimum Efficiency Performance Standard, table B2
• 380~415 Volts 3 Phase 50 Hz (other supplies on request)
• Highest quality insulation system utilizing Class H and F materials
• Low temperature rise for substantial thermal reserve
• Continuous rated, duty type S1
• Cast Iron / Fabricated Steel construction with side mounted terminal box
• IP23 protection

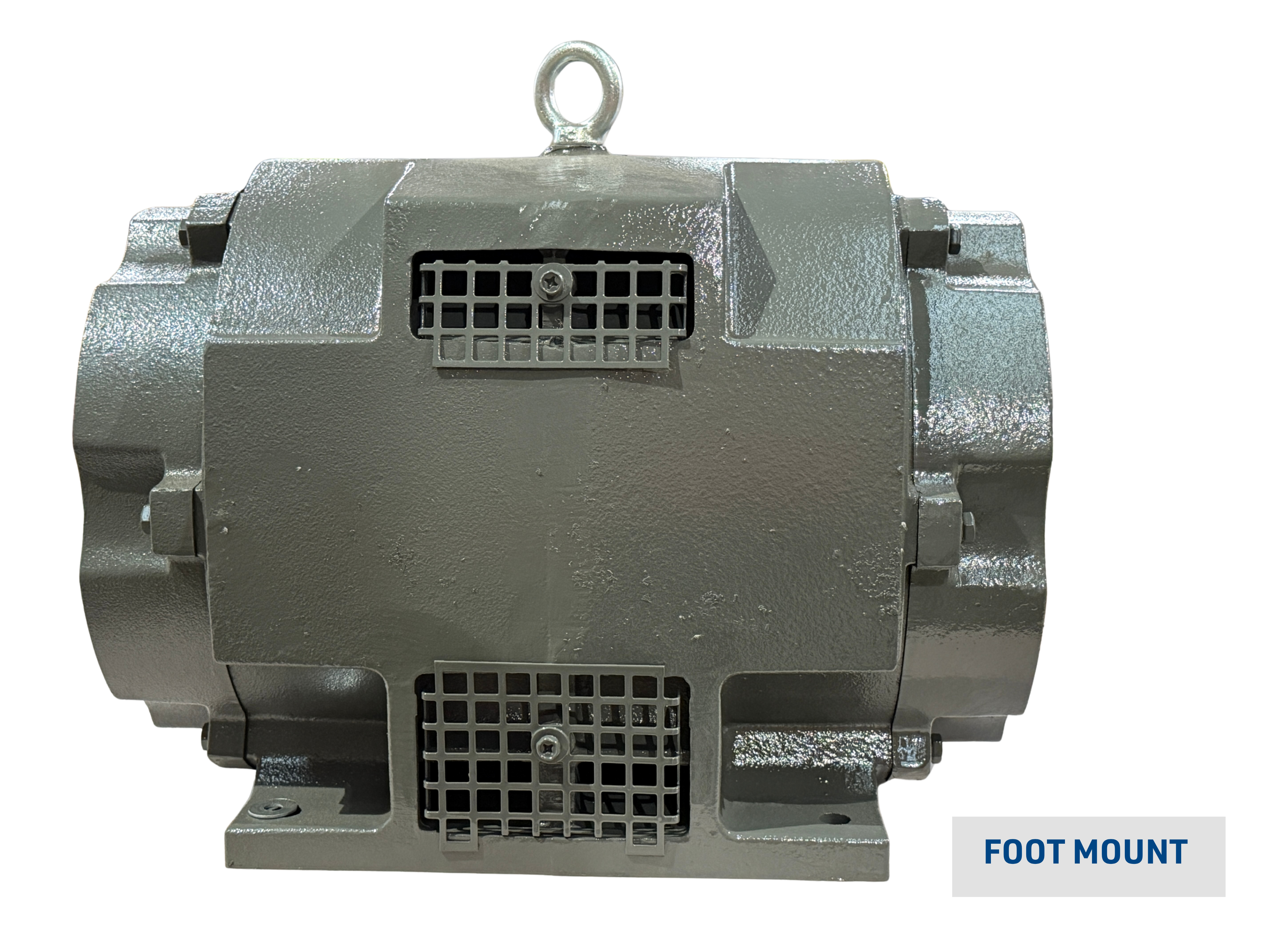

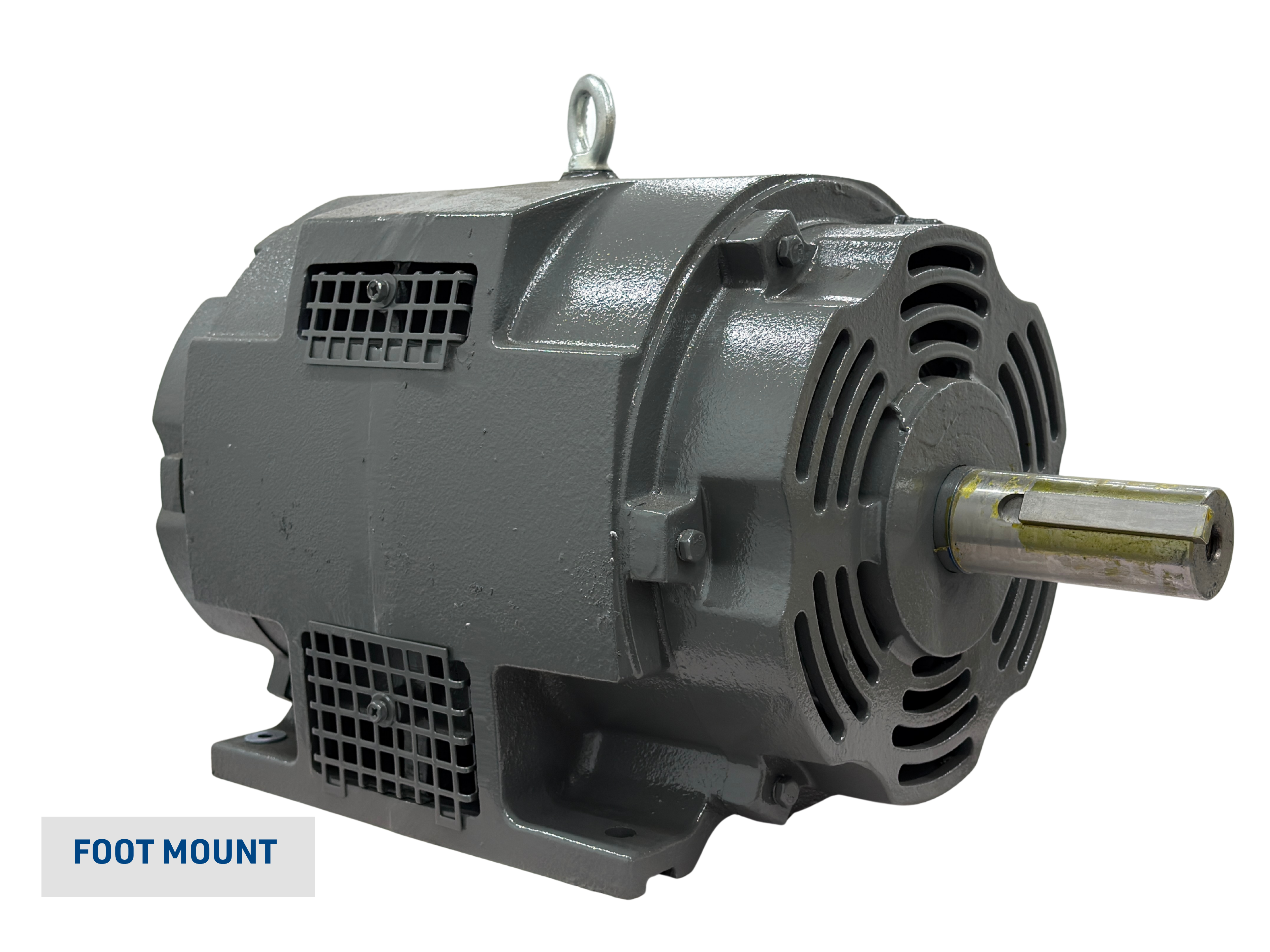

• Mounting available – Foot, Foot and D flange, D Flange
• Wide range of options available
• 2 year warranty​

• Ensures reliable performance and compatibility
• Wide power range provides flexibility for various applications
• Open Drip Proof design
• Meeting the Minimum Efficiency Performance Standard table B2
• Adaptable voltage range to suit different power supplies
• High-quality insulation materials ensure reliable motor operation
• Low temperature rise indicates a higher thermal margin
• Continuous rated duty type S1
• Sturdy construction materials (Cast Iron / Fabricated Steel) ensure durability.
• IP23 protection
• Various mounting options offer versatility in installation
• Wide range of options allows customization based on specific requirements

ASFB-ASHB-20140331

TECO-Electric-Motor-Manual-ODP-TEFC-SCIM-IOM-Rev-04-~-2018

No software downloads.

• 7.5
• 11.0
• 15.0
• 18.5
• 22.0
• 30.0
• 37.0
• 45.0
• 55.0
• 75.0
• 90.0
• 110.0
• 132.0
• 150.0
• 185.0
• 220.0
• 265.0
• 300.0
• 335.0
• 375.0
• 465.0
• 510.0
• 700.0

• 415

• 3

• 2
• 4
• 6

• 1
• 5
• 10
• 25
• 50
• 100
• All

• Metric frame motor to AS1359
• 7.5kW to 700kW
• Open Drip Proof (IC01)
• Motor types ASHB & ASJC, meet AS1359.5 *Minimum Efficiency Performance Standard, table B2
• 380~415 Volts 3 Phase 50 Hz (other supplies on request)
• Highest quality insulation system utilizing Class H and F materials
• Low temperature rise for substantial thermal reserve
• Continuous rated, duty type S1
• Cast Iron / Fabricated Steel construction with side mounted terminal box
• IP23 protection
• Mounting available – Foot, Foot and D flange, D Flange
• Wide range of options available
• 2 year warranty​

• Ensures reliable performance and compatibility
• Wide power range provides flexibility for various applications
• Open Drip Proof design
• Meeting the Minimum Efficiency Performance Standard table B2
• Adaptable voltage range to suit different power supplies
• High-quality insulation materials ensure reliable motor operation
• Low temperature rise indicates a higher thermal margin
• Continuous rated duty type S1
• Sturdy construction materials (Cast Iron / Fabricated Steel) ensure durability.
• IP23 protection
• Various mounting options offer versatility in installation
• Wide range of options allows customization based on specific requirements

ASFB-ASHB-20140331

TECO-Electric-Motor-Manual-ODP-TEFC-SCIM-IOM-Rev-04-~-2018

No software downloads.
