TECO IE2 Flameproof (Exd/Exde)

Superior Performance and Safety in Hazardous Environment, IEC Ex and ATEX, IP56 Protection

TECO IE2 Flameproof Electric Motor has been certified with IEC Ex and ATEX certifications, ensuring its compliance with safety standards.

It offers two types of motor configurations: Ex d (Flameproof Motor and Terminal Box) and Ex de (Flameproof Motor with Increased Safety Terminal Box), suitable for installation in Zone 1 or Zone 2 areas.

The motors are designed to operate in challenging environments and have been rated for IIB or IIC hazardous classifications.

With a high level of motor efficiency and a wide range of available power outputs, ranging to 110kW these motors are versatile and reliable.

Equipped with a Totally Enclosed Fan Cooled (IC411) design thereby ensuring effective heat dissipation and protection from external contaminants. The TECO motor type AEHBXZ exceeds the Minimum Efficiency Performance Standard set by IEC60034, further enhancing its energy efficiency. They operate on a 380-415 Volts 3-Phase 50 Hz power supply, with alternative options available upon request.

With a robust construction featuring cast iron materials and a side-mounted terminal box, TECO IE2 Flameproof motors are built to withstand demanding conditions.

They are designed for continuous operation duty type S1 and have a low noise level, ensuring a quieter working environment. They also feature IP55 protection, safeguarding against dust and water ingress.

To cater to specific design, TECO IE2 Flameproof motor is supplied painted R13 Red and are readily available. To ensure customer satisfaction, the motor comes with a 2-year warranty, providing support and coverage against manufacturing defects or performance issues.

• IEC Ex and ATEX Certified with certification available as :
• Ex d (Flameproof Motor and Terminal Box) , Zone 1/Zone 2 , IIB , T4(T3*) , 50 deg C ambient
• Ex de (Flameproof Motor with Increased Safety Terminal Box) , Zone 1/Zone 2 , IIC , T4 (T3*) , 50 deg C ambient
• *T3 for converter supply (PWM Converter , Inverter) . Condition of safe use is mandatory connection of thermistors.
• Metric frame motors to AS1359, AS/BS frame allocation
• D80 to D280 frames
• 0.55 kW to 55 kW (Stock) or 110kW (Built to Order)
• Totally Enclosed Fan Cooled (IC411)
• Motor type AEHBXZ , meets or exceeds AS1359.5 Minimum EfficiencyTeco-Ex-motor-Instruction-Manual Performance Standard, table B2 (a number of motors meet or exceed high efficiency to table B3)
• 380~415 Volts 3 Phase 50 Hz (other supplies on request)
• Class F insulation system materials
• Low temperature rise for substantial thermal reserve
• Continuous rated, duty type S1
• Low noise level
• IP55 protection
• Motors available painted R13 red (AS2700) off the shelf.

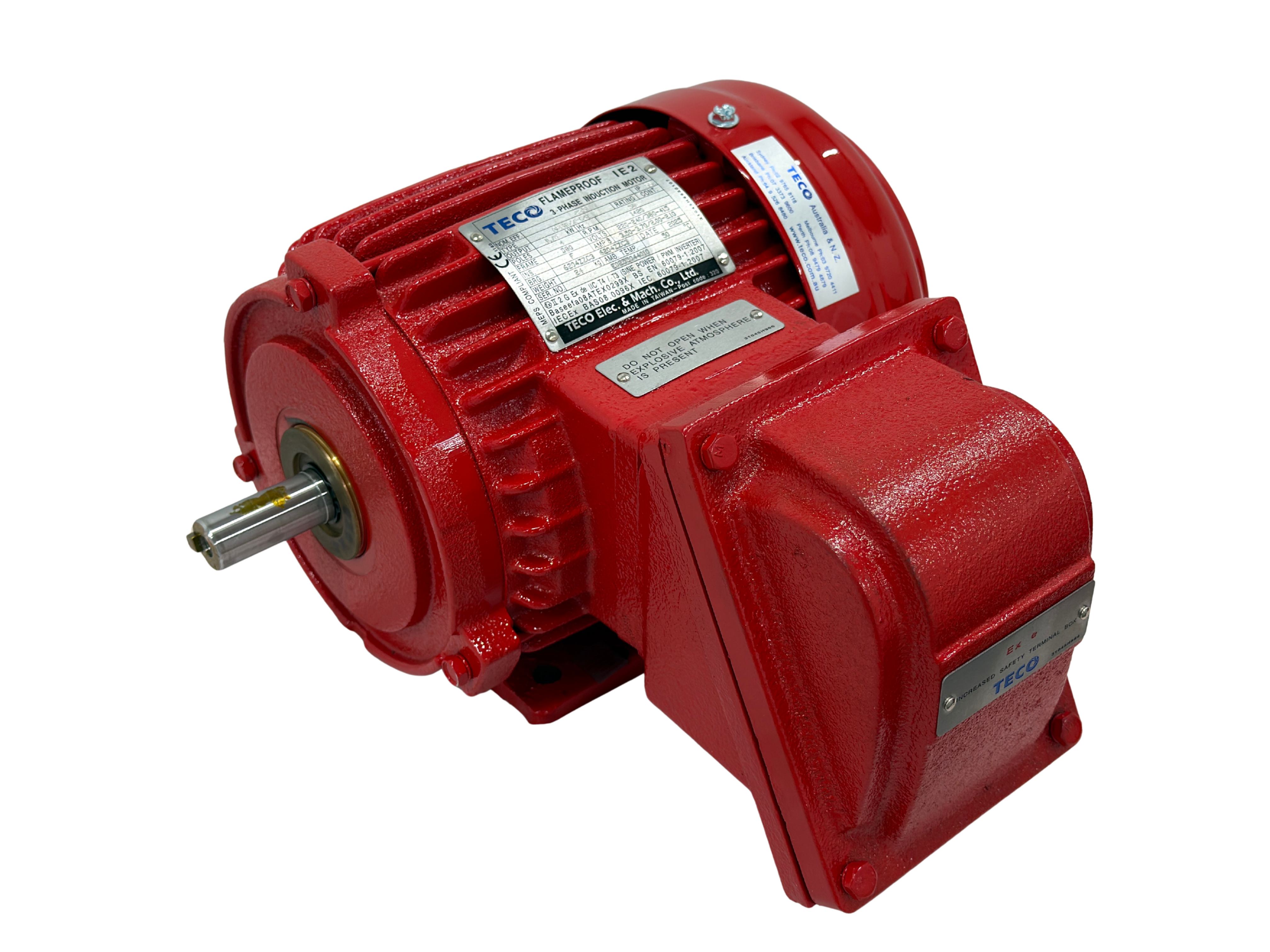

• Cast Iron construction with side mounted terminal box

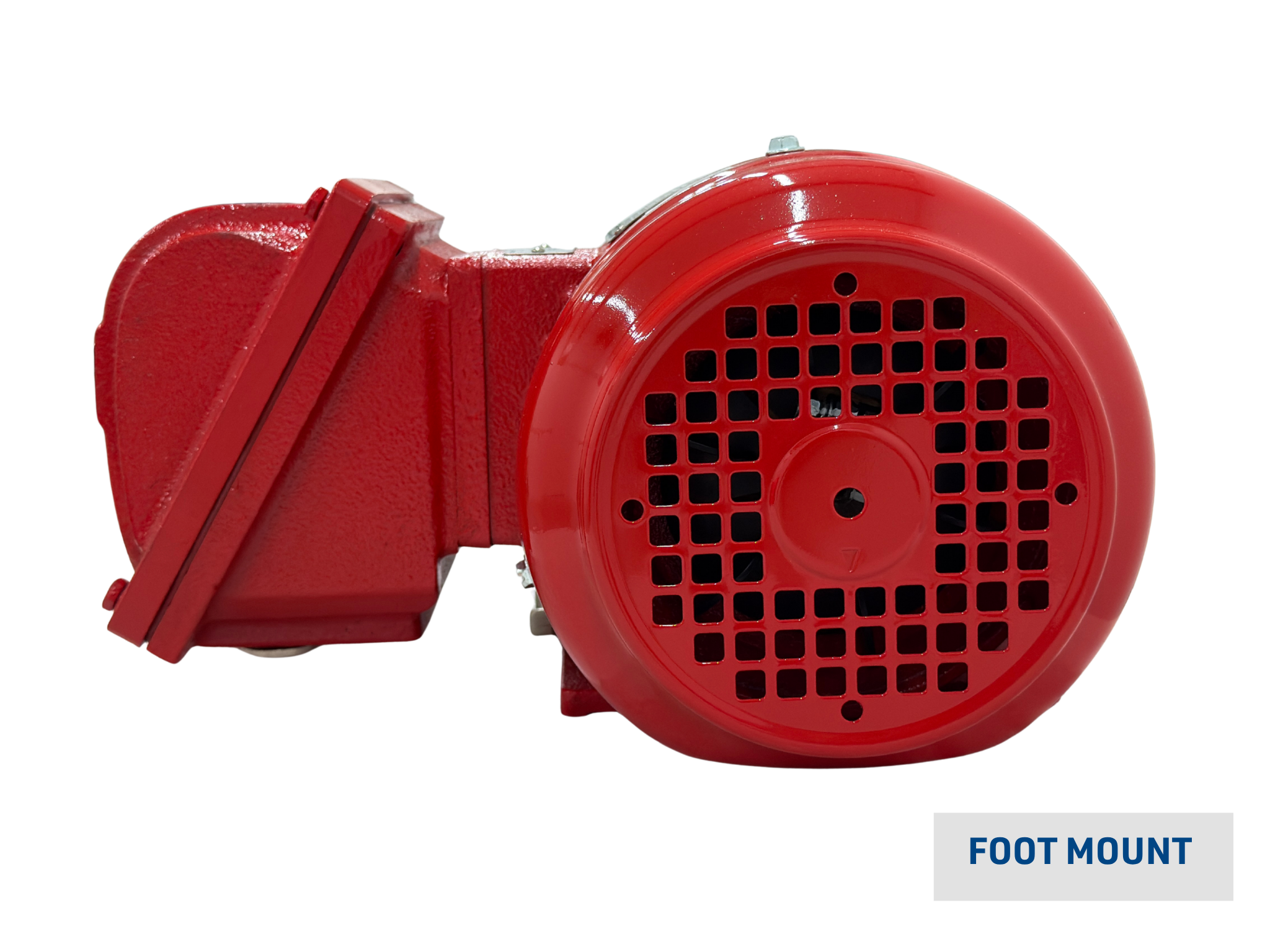

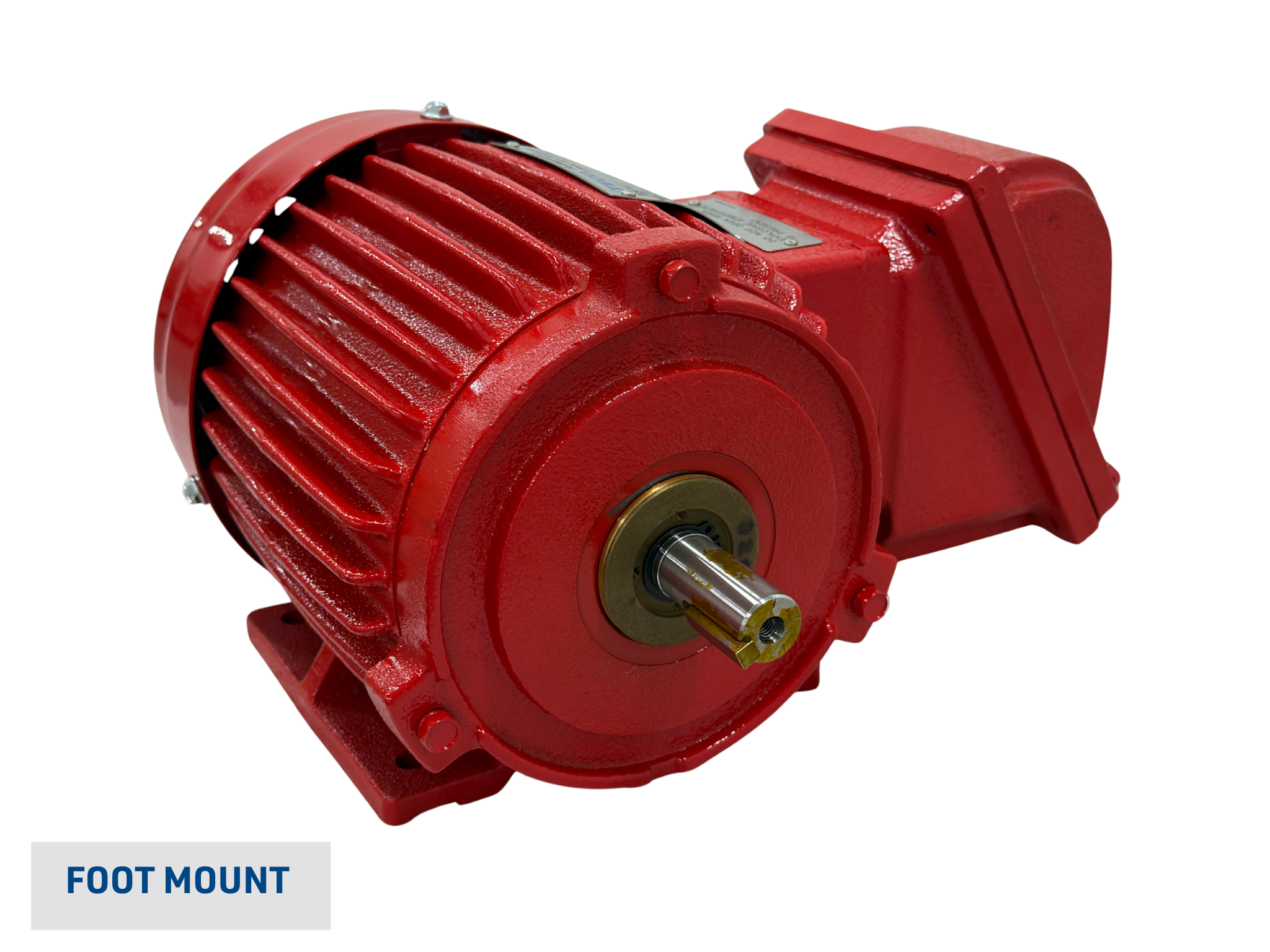

• Mountings available – Foot, Foot and flange (D type only), Flange (D type only)
• MAX Ex Brake Motors
• 2 year warranty​

• Ensures compliance with safety standards and regulations
• Reliable motors designed for hazardous environments
• Versatile options for different installation requirements
• Can operate in challenging conditions with IIB or IIC group ratings
• Offers a wide range of power outputs to meet various needs
• Effective heat dissipation and protection for extended motor life
• Energy-efficient motors that exceed minimum performance standards
• Compatible with standard power supply or adaptable to specific requirements
• Durable construction materials for long-lasting performance
• Flexible mounting options to accommodate different setups
• Suitable for continuous operation without overheating
• Provides a quieter working environment for improved comfort
• Protection against dust and water to ensure motor reliability

TECO MAX Exd – Exde Brochure

Teco-Ex-motor-Instruction-Manual

IECEx_BAS_08.0096X_008 (Frames 80 and 90)

IECEx_BAS_08.0097X_007 (Frames 100 and 112)

IECEx_BAS_08.0098X_007 (Frames 160 and 180)

IECEx_BAS_09.0045X_008 (Frames 200 and 225)

IECEx_BAS_09.0047X_009 (Frames 250 and 280)

IECEx_BAS_09.0067X_007 (Frame 132)

No software downloads.

kW Rating: Nothing selected

• 0.75
• 1.10
• 1.50
• 2.20
• 3.00
• 4.00
• 5.50
• 7.50
• 11.00
• 15.00
• 18.50
• 22.00
• 30.00
• 37.00
• 45.00
• 55.00

Voltage: Nothing selected

• 380
• 415

Phases: Nothing selected

• 3

No. of Poles: Nothing selected

• 2
• 4
• 6

Frame Size: Nothing selected

Start typing a search query Clear filters Show 10

• 1
• 5
• 10
• 25
• 50
• 100
• All

entries

kW Rating	Voltage	Phases	No. of Poles	Frame Size	Datasheet PDF	PDF Drawings	CAD Drawings	3D Drawings	Download All	Enquire
655	mojodojo	19/03/2026 12:01 PM	mojodojo	19/03/2026 12:01 PM	0.75	415	3	2	80	https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/Datasheet-338.pdf	https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/PDFdrawings-341.zip	https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/CADdrawings-341.zip	Available Upon Request
656	mojodojo	19/03/2026 12:01 PM	mojodojo	19/03/2026 12:01 PM	0.75	415	3	4	80	https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/Datasheet-339.pdf	https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/PDFdrawings-341.zip	https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/CADdrawings-341.zip	Available Upon Request
657	mojodojo	19/03/2026 12:01 PM	mojodojo	19/03/2026 12:01 PM	1.10	415	3	2	80	https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/Datasheet-341.pdf	https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/PDFdrawings-341.zip	https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/CADdrawings-341.zip	Available Upon Request
658	mojodojo	19/03/2026 12:01 PM	mojodojo	19/03/2026 12:01 PM	1.10	415	3	6	90L	https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/Datasheet-343.pdf	https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/PDFdrawings-347.zip	https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/CADdrawings-347.zip	Available Upon Request
659	mojodojo	19/03/2026 12:01 PM	mojodojo	19/03/2026 12:01 PM	1.50	415	3	4	90L	https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/Datasheet-345.pdf	https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/PDFdrawings-347.zip	https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/CADdrawings-347.zip	Available Upon Request
660	mojodojo	19/03/2026 12:01 PM	mojodojo	19/03/2026 12:01 PM	2.20	415	3	2	90L	https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/Datasheet-347.pdf	https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/PDFdrawings-347.zip	https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/CADdrawings-347.zip	Available Upon Request
661	mojodojo	19/03/2026 12:01 PM	mojodojo	19/03/2026 12:01 PM	0.75	415	3	6	90S	https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/Datasheet-340.pdf	https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/PDFdrawings-344.zip	https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/CADdrawings-344.zip	Available Upon Request
662	mojodojo	19/03/2026 12:01 PM	mojodojo	19/03/2026 12:01 PM	1.10	415	3	4	90S	https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/Datasheet-342.pdf	https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/PDFdrawings-344.zip	https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/CADdrawings-344.zip	Available Upon Request
663	mojodojo	19/03/2026 12:01 PM	mojodojo	19/03/2026 12:01 PM	1.50	415	3	2	90S	https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/Datasheet-344.pdf	https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/PDFdrawings-344.zip	https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/CADdrawings-344.zip	Available Upon Request
664	mojodojo	19/03/2026 12:01 PM	mojodojo	19/03/2026 12:01 PM	1.50	415	3	6	100L	https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/Datasheet-346.pdf	https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/PDFdrawings-351.zip	https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/CADdrawings-351.zip	Available Upon Request
kW Rating	Voltage	Phases	No. of Poles	Frame Size

• IEC Ex and ATEX Certified with certification available as :
• Ex d (Flameproof Motor and Terminal Box) , Zone 1/Zone 2 , IIB , T4(T3*) , 50 deg C ambient
• Ex de (Flameproof Motor with Increased Safety Terminal Box) , Zone 1/Zone 2 , IIC , T4 (T3*) , 50 deg C ambient
• *T3 for converter supply (PWM Converter , Inverter) . Condition of safe use is mandatory connection of thermistors.
• Metric frame motors to AS1359, AS/BS frame allocation
• D80 to D280 frames
• 0.55 kW to 55 kW (Stock) or 110kW (Built to Order)
• Totally Enclosed Fan Cooled (IC411)
• Motor type AEHBXZ , meets or exceeds AS1359.5 Minimum EfficiencyTeco-Ex-motor-Instruction-Manual Performance Standard, table B2 (a number of motors meet or exceed high efficiency to table B3)
• 380~415 Volts 3 Phase 50 Hz (other supplies on request)
• Class F insulation system materials
• Low temperature rise for substantial thermal reserve
• Continuous rated, duty type S1
• Low noise level
• IP55 protection
• Motors available painted R13 red (AS2700) off the shelf.
• Cast Iron construction with side mounted terminal box
• Mountings available – Foot, Foot and flange (D type only), Flange (D type only)
• MAX Ex Brake Motors
• 2 year warranty​

• Ensures compliance with safety standards and regulations
• Reliable motors designed for hazardous environments
• Versatile options for different installation requirements
• Can operate in challenging conditions with IIB or IIC group ratings
• Offers a wide range of power outputs to meet various needs
• Effective heat dissipation and protection for extended motor life
• Energy-efficient motors that exceed minimum performance standards
• Compatible with standard power supply or adaptable to specific requirements
• Durable construction materials for long-lasting performance
• Flexible mounting options to accommodate different setups
• Suitable for continuous operation without overheating
• Provides a quieter working environment for improved comfort
• Protection against dust and water to ensure motor reliability

TECO MAX Exd – Exde Brochure

Teco-Ex-motor-Instruction-Manual

IECEx_BAS_08.0096X_008 (Frames 80 and 90)

IECEx_BAS_08.0097X_007 (Frames 100 and 112)

IECEx_BAS_08.0098X_007 (Frames 160 and 180)

IECEx_BAS_09.0045X_008 (Frames 200 and 225)

IECEx_BAS_09.0047X_009 (Frames 250 and 280)

IECEx_BAS_09.0067X_007 (Frame 132)

No software downloads.

kW Rating: Voltage: Phases: No. of Poles: Frame Size: Clear filters

wdt_ID	wdt_created_by	wdt_created_at	wdt_last_edited_by	wdt_last_edited_at	kW Rating	Voltage	Phases	No. of Poles	Frame Size	Datasheet PDF	PDF Drawings	CAD Drawings	3D Drawings	Download All	Enquire
655	mojodojo	19/03/2026 12:01 PM	mojodojo	19/03/2026 12:01 PM	0.75	415	3	2	80	https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/Datasheet-338.pdf	https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/PDFdrawings-341.zip	https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/CADdrawings-341.zip	Available Upon Request
656	mojodojo	19/03/2026 12:01 PM	mojodojo	19/03/2026 12:01 PM	0.75	415	3	4	80	https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/Datasheet-339.pdf	https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/PDFdrawings-341.zip	https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/CADdrawings-341.zip	Available Upon Request
657	mojodojo	19/03/2026 12:01 PM	mojodojo	19/03/2026 12:01 PM	1.10	415	3	2	80	https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/Datasheet-341.pdf	https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/PDFdrawings-341.zip	https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/CADdrawings-341.zip	Available Upon Request
658	mojodojo	19/03/2026 12:01 PM	mojodojo	19/03/2026 12:01 PM	1.10	415	3	6	90L	https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/Datasheet-343.pdf	https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/PDFdrawings-347.zip	https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/CADdrawings-347.zip	Available Upon Request
659	mojodojo	19/03/2026 12:01 PM	mojodojo	19/03/2026 12:01 PM	1.50	415	3	4	90L	https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/Datasheet-345.pdf	https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/PDFdrawings-347.zip	https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/CADdrawings-347.zip	Available Upon Request
660	mojodojo	19/03/2026 12:01 PM	mojodojo	19/03/2026 12:01 PM	2.20	415	3	2	90L	https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/Datasheet-347.pdf	https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/PDFdrawings-347.zip	https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/CADdrawings-347.zip	Available Upon Request
661	mojodojo	19/03/2026 12:01 PM	mojodojo	19/03/2026 12:01 PM	0.75	415	3	6	90S	https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/Datasheet-340.pdf	https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/PDFdrawings-344.zip	https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/CADdrawings-344.zip	Available Upon Request
662	mojodojo	19/03/2026 12:01 PM	mojodojo	19/03/2026 12:01 PM	1.10	415	3	4	90S	https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/Datasheet-342.pdf	https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/PDFdrawings-344.zip	https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/CADdrawings-344.zip	Available Upon Request
663	mojodojo	19/03/2026 12:01 PM	mojodojo	19/03/2026 12:01 PM	1.50	415	3	2	90S	https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/Datasheet-344.pdf	https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/PDFdrawings-344.zip	https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/CADdrawings-344.zip	Available Upon Request
664	mojodojo	19/03/2026 12:01 PM	mojodojo	19/03/2026 12:01 PM	1.50	415	3	6	100L	https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/Datasheet-346.pdf	https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/PDFdrawings-351.zip	https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/CADdrawings-351.zip	Available Upon Request
					kW Rating	Voltage	Phases	No. of Poles	Frame Size
